Name: National Wetland Inventory

Display Field: attribute

Type: Feature Layer

Geometry Type: esriGeometryPolygon

Description: NWI data support effective wetland management, protection, and restoration. The data provide a baseline for assessing the effectiveness of wetland policies and management actions. These data are used at all levels of government, as well as by private industry and non-profit organizations for wetland regulation and management, land use and conservation planning, environmental impact assessment, and natural resource inventories.Information about wetland inventory included:ATTRIBUTE: Alphanumeric code identifying the wetland classification of the polygon using the system described by Cowardin et al. (1979) WETLAND_TYPE:General description of the wetland classification based on the Cowardin classification. ACRES: Total acreage of a wetland boundary polygon.HGM_CODE: Hydrogeomorphic classification code based on a simplified version of the system described by Tiner (2003) HGM_DESC: Full text description of the hydrogeomorphic classification SPCC_DESC: Simplified Plant Community Classification based on a simplified version of the system described by Eggers and Reed (2011). This field is used as symbology for the 'NWI Simplified Plant Community Classification' layer file. COW_CLASS1: Wetland class from the Cowardin system without the water regime and special modifiers. This field is used as symbology for the 'NWI Cowardin Classification' layer file. In the layer file, AB and EM2 are combined in a single 'Aquatic Bed/Nonpersistent Emergent Vegetation' category. CIRC39_CLASS: Wetland classification based on the system describer by USFWS Circular 39. This field is used as symbology for the 'NWI USFWS Circular 39 Classification' layer file.hgm_symbol: Simplified Landscape Position category based on the hydrogromorphic classification. This field is used as symbology for the 'NWI Simplified HGM Classification' layer file.

Service Item Id: fc0a12c8475f413eb0a0ff15b63ad13a

Copyright Text: Minnesota Department of Natural Resources (MN DNR), 500 Lafayette Road, St. Paul, MN 55155; Minnesota Geospatial Commons, Minnesota IT Services, 658 Cedar Street, Room 300, St. Paul, MN 55155; Hubbard County GIS, Hubbard County Environmental Services, 301 Court Ave, Park Rapids, MN 56470;

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 18056

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 435005.7460630052
YMin: 100171.04604809731
XMax: 565445.3765874207
YMax: 322260.2439291775
Spatial Reference: PROJCS["NAD_1983_HARN_Adj_MN_Hubbard_Feet",GEOGCS["GCS_North_American_1983_HARN",DATUM["D_North_American_1983_HARN",SPHEROID["GRS_1980",6378137.0,298.257222101]],PRIMEM["Greenwich",0.0],UNIT["Degree",0.0174532925199433]],PROJECTION["Transverse_Mercator"],PARAMETER["False_Easting",500035.7771574167],PARAMETER["False_Northing",100007.154316],PARAMETER["Central_Meridian",-94.92055555555557],PARAMETER["Scale_Factor",1.000071553661],PARAMETER["Latitude_Of_Origin",46.80361111111111],UNIT["Foot_US",0.3048006096012192]]

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: circ39_class
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: 1
  Label: Type 1 - Seasonally Flooded
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [158, 97, 58, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Value: 2
  Label: Type 2 - Fresh Meadow
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 235, 190, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Value: 3
  Label: Type 3 - Shallow Marsh
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [115, 255, 223, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Value: 4
  Label: Type 4 - Deep Marsh
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [0, 92, 230, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Value: 5
  Label: Type 5 - Open Water
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [115, 223, 255, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Value: 6
  Label: Type 6 - Shrub Swamp
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [211, 255, 190, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Value: 7
  Label: Type 7 - Wooded Swamp
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [76, 230, 0, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Value: 8
  Label: Type 8 - Bog
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [201, 48, 176, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Value: 80
  Label: Industrial/Municipal
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 127, 127, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Value: 90
  Label: Riverine
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [0, 115, 76, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
Transparency: 60
Labeling Info:
Label Placement: esriServerPolygonPlacementAlwaysHorizontal
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [0, 77, 168, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 9
Font Family: Arial
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 10000.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• attribute ( type: esriFieldTypeString, alias: ATTRIBUTE, length: 20 )
• wetland_type ( type: esriFieldTypeString, alias: WETLAND_TYPE, length: 50 )
• acres ( type: esriFieldTypeDouble, alias: ACRES )
• hgm_code ( type: esriFieldTypeString, alias: HGM_CODE, length: 10 )
• hgm_desc ( type: esriFieldTypeString, alias: HGM_DESC, length: 60 )
• spcc_desc ( type: esriFieldTypeString, alias: SPCC_DESC, length: 60 )
• cow_class1 ( type: esriFieldTypeString, alias: COW_CLASS1, length: 3 )
• circ39_class ( type: esriFieldTypeSmallInteger, alias: CIRC39_CLASS )
• hgm_symbol ( type: esriFieldTypeString, alias: hgm_symbol, length: 20 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape.STArea() ( type: esriFieldTypeDouble, alias: Shape.STArea() )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

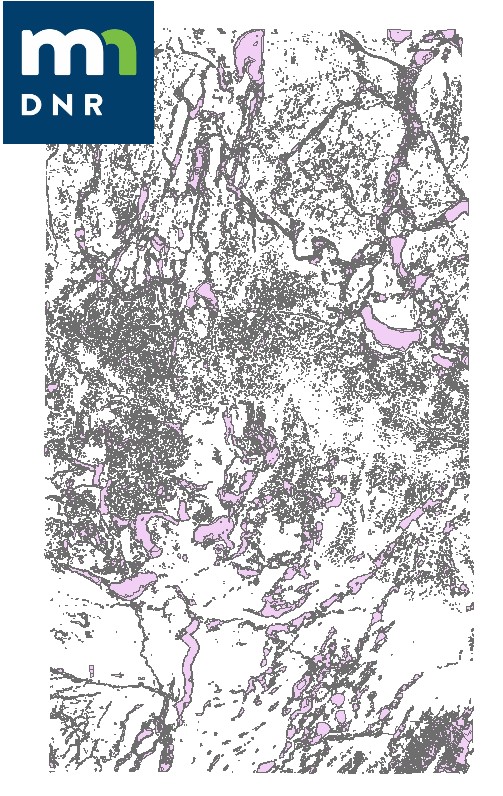

  Iteminfo   Thumbnail   Metadata
